StopLineDetection Class Reference

#include <stoplinedetection.hpp>

Inheritance diagram for StopLineDetection:
Inheritance graph
[legend]

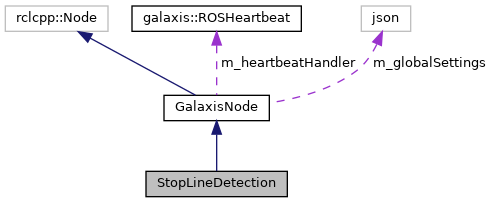

Collaboration diagram for StopLineDetection:
Collaboration graph
[legend]

Public Member Functions

 StopLineDetection ()

 ~StopLineDetection ()


Private Member Functions

void on_stop_line_detection_callback (sensor_msgs::msg::Image::SharedPtr msg)

bool detect_startline (cv::Mat &image, std_msgs::msg::Header const &header)

bool detect_stopline (cv::Mat &image, std_msgs::msg::Header const &header)

rcl_interfaces::msg::SetParametersResult new_parameters_callback (const std::vector< rclcpp::Parameter > &parameters)


Private Attributes

bool m_simulationMode = false

bool m_debugMode = false

bool m_startlineDetectionMode = true

bool m_stopLineDetectionMode = true

cv_bridge::CvImagePtr m_imgBridge_ptr

cv_bridge::CvImagePtr m_imgBridgeLeft_ptr

cv_bridge::CvImagePtr m_imgBridgeRight_ptr

cv_bridge::CvImagePtr m_imgBridgeLeftRef_ptr

cv_bridge::CvImagePtr m_imgBridgeRightRef_ptr

image_transport::Publisher m_stopLineImagePublisher

image_transport::Publisher m_startLineImagePublisher

rclcpp::Publisher< StopLineType >::SharedPtr m_stopLinePublisherSPtr

rclcpp::Subscription< sensor_msgs::msg::Image >::SharedPtr m_StopLineImageSubscriber

bool m_stopLineDetectedInLastStep = false

int m_stopLineHoughMinLineLength = 25

int m_stopLineHoughMaxLineGap = 10

int m_stopLineHoughThreshold = 70

int m_startLineGreynessLowerThreshold = 80

double m_startLineQualityLevel = 0.35

double m_startLineMinDistance = 10

int m_startLineBlockSize = 3

double m_startLineK = 0.04

int m_startLineClusterEps = 10

int m_startLinePointsCountThreshold = 9

cv::Mat newCameraMatrix

cv::Mat perspectiveTransformMatrix


Additional Inherited Members

- Protected Member Functions inherited from GalaxisNode
 GalaxisNode ()=delete

 GalaxisNode (std::string p_name, unsigned int p_heartbeatTimePeriod)

 GalaxisNode (std::string p_name)

template<typename MsgSPtr >
void tickSub (std::map< galaxis::serviceStates::State, std::function< void(const MsgSPtr)>> const *p_functionMapPtr, MsgSPtr const p_message)

template<typename... Args>
void tickPub (std::map< galaxis::serviceStates::State, std::function< void(Args...)>> const *p_functionMapPtr, Args... p_args)

void register_callback (std::function< void(galaxis::serviceStates::State)> p_function)

void service_state_callback (ServiceStateType::SharedPtr const p_msgSPtr)

galaxis::serviceStates::State get_current_service_state () const

void enable_parameters (std::function< rcl_interfaces::msg::SetParametersResult(const std::vector< rclcpp::Parameter > &)> callbackFunc)

void create_parameters (std::shared_ptr< json > configJsonSPtr)

json const & get_global_settings ()


Detailed Description

Definition at line 24 of file stoplinedetection.hpp.

Constructor & Destructor Documentation

◆ StopLineDetection()

StopLineDetection::StopLineDetection ( )

Definition at line 34 of file stoplinedetection.cpp.

34  : GalaxisNode("StopLineDetection") {
35  log("StopLineDetectorNode: Initializing...");
36
37  std::string configPath = "settings/onstartup_startstopline.json";
38  auto settingsJsonSPtr = read_json_file(configPath);
39  json& settingsJson = (*settingsJsonSPtr)["settings"];
40  m_debugMode = settingsJson["debug_mode"];
41  m_startlineDetectionMode = settingsJson["startline_detection"];
42  m_stopLineDetectionMode = settingsJson["stopline_detection"];
43
44  // Publisher
45  if(m_debugMode == true) {
46  m_stopLineImagePublisher = image_transport::create_publisher(this, galaxis::ros::TOPIC_STOP_LINE_IMAGE);
47  m_startLineImagePublisher = image_transport::create_publisher(this, galaxis::ros::TOPIC_START_LINE_IMAGE);
48  }
49
50  galaxis::ros::create_publisher(this, m_stopLinePublisherSPtr);
51
52
53  // get gloabl settings
54  m_simulationMode = this->get_global_settings()["simulation_mode"];
55
56  log("Configuration:\n - SimulationMode: ", m_simulationMode ? "ENABLED" : "DISABLED");
57
58  if(m_simulationMode) { // Initializing Simulation
59  rclcpp::QoS qos_params = get_qos_profile(QOS_BEST_EFFORT);
60  m_StopLineImageSubscriber = this->create_subscription<sensor_msgs::msg::Image>(
61  "/camera/image_raw",
62  qos_params,
63  std::bind(&StopLineDetection::on_stop_line_detection_callback, this, _1));
64  } else { // Initializing Normal Mode
65  rclcpp::QoS qos_params = get_qos_profile(QOS_BEST_EFFORT);
66  m_StopLineImageSubscriber = this->create_subscription<sensor_msgs::msg::Image>(
67  TOPIC_CAMERA_RAW,
68  qos_params,
69  std::bind(&StopLineDetection::on_stop_line_detection_callback, this, _1));
70  }
71
72
73  // get camera matrix and top view transform
74  newCameraMatrix = galaxis::camera::getOptimalCameraMatrix();
75  perspectiveTransformMatrix = galaxis::camera::getPerspectiveTransform();
76
77  this->enable_parameters(std::bind(&StopLineDetection::new_parameters_callback, this, _1));
78 }

References GalaxisNode::enable_parameters(), GalaxisNode::get_global_settings(), galaxis::camera::getOptimalCameraMatrix(), galaxis::camera::getPerspectiveTransform(), galaxis::utils::log(), m_debugMode, m_simulationMode, m_startlineDetectionMode, m_startLineImagePublisher, m_stopLineDetectionMode, m_stopLineImagePublisher, m_StopLineImageSubscriber, m_stopLinePublisherSPtr, new_parameters_callback(), newCameraMatrix, on_stop_line_detection_callback(), perspectiveTransformMatrix, and galaxis::utils::read_json_file().

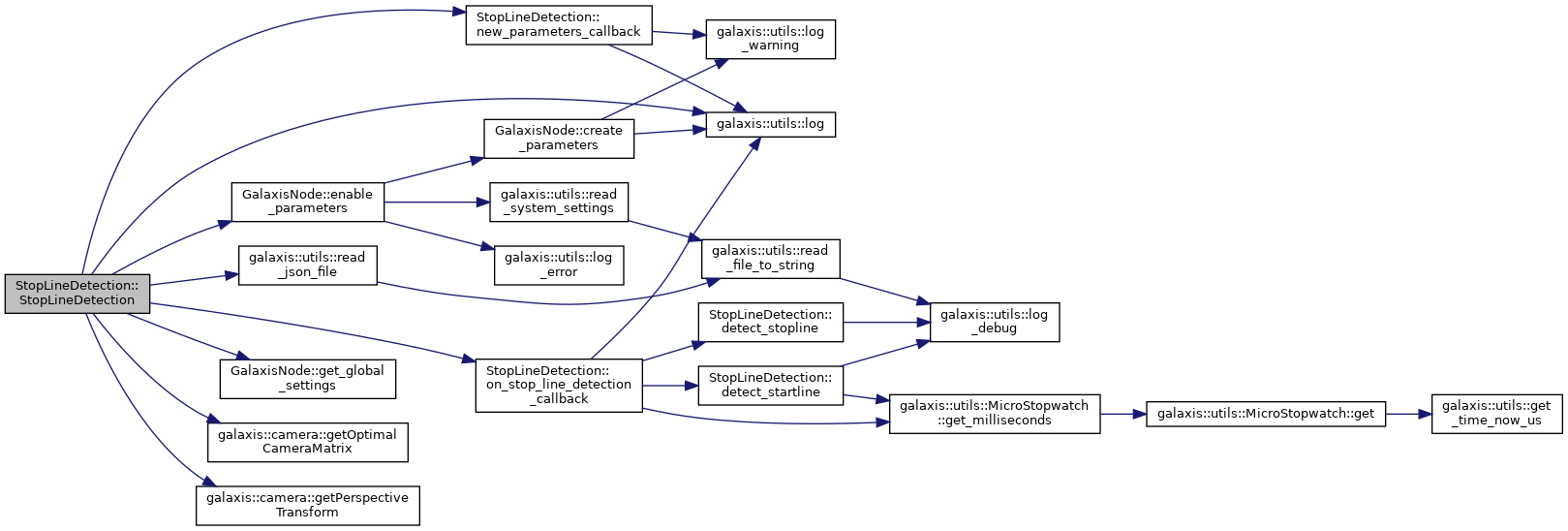

Here is the call graph for this function:

◆ ~StopLineDetection()

StopLineDetection::~StopLineDetection ( )

Definition at line 80 of file stoplinedetection.cpp.

80 {}

Member Function Documentation

◆ detect_startline()

bool StopLineDetection::detect_startline ( cv::Mat &  image,
std_msgs::msg::Header const &  header
)
private

Parameters for Shi-Tomasi algorithm

Apply corner detection

Draw corners detected

Definition at line 212 of file stoplinedetection.cpp.

212  {
213  galaxis::utils::MicroStopwatch stopwatch;
214
215  cv::Mat& frame = image;
216  bool startLineDetected = false;
217
218
219  cv::Mat greyImage;
220  cv::Mat temp;
221  cv::cvtColor(frame, temp, cv::COLOR_BGR2GRAY);
222  threshold(temp, greyImage, m_startLineGreynessLowerThreshold, 255, CV_THRESH_BINARY);
223
225  std::vector<cv::Point2f> corners;
226  bool use_harris_detector = false;
227
228
229  cv::RNG rng(12345);
230
232  cv::goodFeaturesToTrack(greyImage, corners, 0, m_startLineQualityLevel, m_startLineMinDistance, cv::Mat(), m_startLineBlockSize,
233  use_harris_detector, m_startLineK);
234
235
236  double yAverage = 0.0;
237  for(auto const& corner : corners) {
238  yAverage += corner.y;
239  }
240  yAverage /= corners.size();
241
242
243  int pointsInAverage = 0;
244  std::vector<cv::Point2f> cornersPostprocessed;
245  cornersPostprocessed.reserve(corners.size());
246  for(auto const& corner : corners) {
247  if(std::fabs(corner.y - yAverage) < m_startLineClusterEps) {
248  pointsInAverage++;
249  cornersPostprocessed.push_back(corner);
250  }
251  }
252
254  if(pointsInAverage > m_startLinePointsCountThreshold) {
255  log_debug("StartLine with Detected Corners: ", cornersPostprocessed.size());
256  log_debug("Corner Detection Time [ms]: ", stopwatch.get_milliseconds());
257  startLineDetected = true;
258  }
259
260  if(m_debugMode && m_startLineImagePublisher.getNumSubscribers() > 0) {
261  int r = 4;
262  for (const cv::Point2f& corner : cornersPostprocessed)
263  {
264  cv::circle(frame, corner, r, cv::Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0, 255)), -1, 8,
265  0);
266  }
267
268  // send debug image
269  std::shared_ptr<sensor_msgs::msg::Image> msgImgSPtr = std::make_shared<sensor_msgs::msg::Image>();
270  cv_bridge::CvImage m_bridgeImg = cv_bridge::CvImage(header, sensor_msgs::image_encodings::BGR8, frame); // RGB8
271  m_bridgeImg.toImageMsg(*msgImgSPtr); // cv_bridge to sensor_msgs::Image
272  m_startLineImagePublisher.publish(msgImgSPtr);
273  }
274
275  return startLineDetected;
276 }

References galaxis::utils::MicroStopwatch::get_milliseconds(), galaxis::utils::log_debug(), m_debugMode, m_startLineBlockSize, m_startLineClusterEps, m_startLineGreynessLowerThreshold, m_startLineImagePublisher, m_startLineK, m_startLineMinDistance, m_startLinePointsCountThreshold, and m_startLineQualityLevel.

Referenced by on_stop_line_detection_callback().

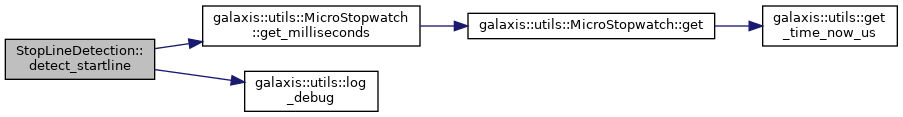

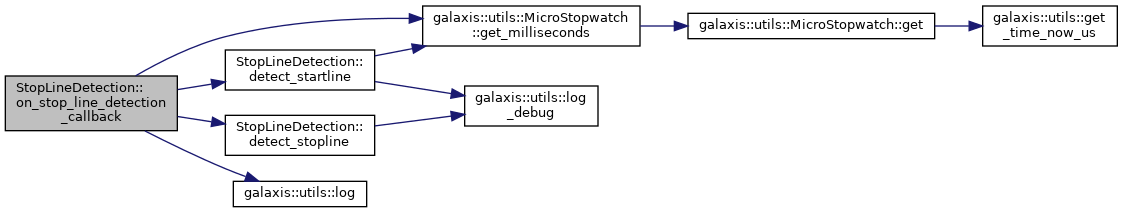

Here is the call graph for this function:
Here is the caller graph for this function:

◆ detect_stopline()

bool StopLineDetection::detect_stopline ( cv::Mat &  image,
std_msgs::msg::Header const &  header
)
private

Apply Canny edge detector

  1. Use Probabilistic Hough Transform

Show the result

Definition at line 148 of file stoplinedetection.cpp.

148  {
149  galaxis::utils::MicroStopwatch stopwatch;
150  bool stopLineDetected = false;
151
152  cv::Mat greyImage;
153  cv::Mat temp;
154  assert(image.channels() > 1);
155  cv::cvtColor(image, temp, cv::COLOR_BGR2GRAY);
156  threshold(temp, greyImage, 200, 255, CV_THRESH_BINARY);
157
159  cv::Mat inputImage;
160  Canny(greyImage, inputImage, 60, 200, 3);
161
162  cv::Mat debugImage;
163  cv::cvtColor(inputImage, debugImage, CV_GRAY2BGR);
164
165  // Do the work
166  std::vector<cv::Vec4i> p_lines;
168  cv::HoughLinesP( inputImage, p_lines,
169  1, CV_PI/180, m_stopLineHoughThreshold,
170  m_stopLineHoughMinLineLength, m_stopLineHoughMaxLineGap);
171
172  // std::cout << "Raw detections from hough: " << std::to_string(p_lines.size()) << std::endl;
173
174  std::vector<cv::Vec4i> p_linesPostprocessed;
175  p_linesPostprocessed.reserve(p_lines.size());
176
177  int yTolerance = 18;
178  int xMinLength = 50;
179  for(auto const& line : p_lines) {
180  if(std::fabs(line[1] - line[3]) < yTolerance && std::fabs(line[0] - line[2]) > xMinLength) {
181  p_linesPostprocessed.push_back(line);
182  }
183  }
184
185  if(p_linesPostprocessed.size() > 0) {
186  stopLineDetected = true;
187  }
188
189  if(m_debugMode && m_stopLineImagePublisher.getNumSubscribers() > 0) {
190  if(p_linesPostprocessed.size() > 0) log_debug("Detected StopLines: ", p_linesPostprocessed.size());
191  // log_debug("StartStopLineDetection Time [us]: ", stopwatch.get());
192
194  for (const cv::Vec4i& l : p_linesPostprocessed) {
195  #ifndef CV_VERSION_EPOCH
196  cv::line(debugImage, cv::Point(l[0], l[1]), cv::Point(l[2], l[3]), cv::Scalar(255, 0, 0), 3, cv::LINE_AA);
197  #else
198  cv::line(debugImage, cv::Point(l[0], l[1]), cv::Point(l[2], l[3]), cv::Scalar(255, 0, 0), 3, CV_AA);
199  #endif
200  }
201
202  // send debug image
203  std::shared_ptr<sensor_msgs::msg::Image> msgImgSPtr = std::make_shared<sensor_msgs::msg::Image>();
204  cv_bridge::CvImage m_bridgeImg = cv_bridge::CvImage(header, sensor_msgs::image_encodings::BGR8, debugImage); // RGB8
205  m_bridgeImg.toImageMsg(*msgImgSPtr); // cv_bridge to sensor_msgs::Image
206  m_stopLineImagePublisher.publish(msgImgSPtr);
207  }
208
209  return stopLineDetected;
210 }

References galaxis::utils::log_debug(), m_debugMode, m_stopLineHoughMaxLineGap, m_stopLineHoughMinLineLength, m_stopLineHoughThreshold, and m_stopLineImagePublisher.

Referenced by on_stop_line_detection_callback().

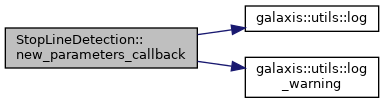

Here is the call graph for this function:
Here is the caller graph for this function:

◆ new_parameters_callback()

rcl_interfaces::msg::SetParametersResult StopLineDetection::new_parameters_callback ( const std::vector< rclcpp::Parameter > &  parameters)
private

Definition at line 278 of file stoplinedetection.cpp.

278  {
279  log("[StopLineDetection] NEW PARAMETERS");
280
281  rcl_interfaces::msg::SetParametersResult result;
282  result.successful = true;
283  result.reason = "";
284
285  for (const auto &param: parameters) {
286  if (param.get_name() == "stopline.hough_lines_minLineLength") {
287  if(check_parameter<int>(param, result, 1, 1000)) {
288  m_stopLineHoughMinLineLength = param.as_int();
289  }
290  }
291  else if (param.get_name() == "stopline.hough_lines_maxLineGap") {
292  if(check_parameter<int>(param, result, 1, 1000)) {
293  m_stopLineHoughMaxLineGap = param.as_int();
294  }
295  }
296  else if (param.get_name() == "startline.whiteness_lower_threshold") {
297  if(check_parameter<int>(param, result, 1, 1000)) {
298  m_startLineGreynessLowerThreshold = param.as_int();
299  }
300  }
301  else if (param.get_name() == "startline.feature_quality_level") {
302  if(check_parameter<double>(param, result, 0, 1)) {
303  m_startLineQualityLevel = param.as_double();
304  }
305  }
306  else if (param.get_name() == "startline.feature_min_distance") {
307  if(check_parameter<int>(param, result, 0, 1000)) {
308  m_startLineMinDistance = param.as_int();
309  }
310  }
311  else if (param.get_name() == "startline.feature_block_size") {
312  if(check_parameter<int>(param, result, 0, 1000)) {
313  m_startLineBlockSize = param.as_int();
314  }
315  }
316  else if (param.get_name() == "startline.feature_k") {
317  if(check_parameter<double>(param, result, 0, 5)) {
318  m_startLineK = param.as_double();
319  }
320  }
321  else if (param.get_name() == "startline.cluster_eps") {
322  if(check_parameter<int>(param, result, 0, 50)) {
323  m_startLineClusterEps = param.as_int();
324  }
325  }
326  else if (param.get_name() == "startline.points_count_threshold") {
327  if(check_parameter<int>(param, result, 0, 500)) {
328  m_startLinePointsCountThreshold = param.as_int();
329  }
330  }
331  else if (param.get_name() == "stopline.hough_lines_threshold") {
332  if(check_parameter<int>(param, result, 1, 1000)) {
333  m_stopLineHoughThreshold = param.as_int();
334  }
335  } else {
336  result.successful = false;
337  result.reason += "[" + param.get_name() + "] UNKNOWN param or NOT IMPLEMENTED; ";
338  }
339  }
340
341  if(result.successful == false) {
342  log_warning("[AutopilotNode] Failed to set some parameters. Reasons: ", result.reason);
343  }
344
345  return result;
346 }

References galaxis::utils::log(), galaxis::utils::log_warning(), m_startLineBlockSize, m_startLineClusterEps, m_startLineGreynessLowerThreshold, m_startLineK, m_startLineMinDistance, m_startLinePointsCountThreshold, m_startLineQualityLevel, m_stopLineHoughMaxLineGap, m_stopLineHoughMinLineLength, and m_stopLineHoughThreshold.

Referenced by StopLineDetection().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ on_stop_line_detection_callback()

void StopLineDetection::on_stop_line_detection_callback ( sensor_msgs::msg::Image::SharedPtr  msg)
private

Definition at line 82 of file stoplinedetection.cpp.

82  {
83  galaxis::utils::MicroStopwatch stopwatch;
84
85  // CvImage
86  // class CvImage
87  // {
88  // public:
89  // std_msgs::Header header;
90  // std::string encoding;
91  // cv::Mat image;
92  // };
93  std::shared_ptr<cv_bridge::CvImage const> cvImgSPtr = cv_bridge::toCvShare(msg, sensor_msgs::image_encodings::BGR8); //BGR8 //RGB8
94
95  assert(cvImgSPtr->image.cols == 512 && cvImgSPtr->image.rows == 256);
96
97  cv::Mat undistortedImage;
98  undistortedImage.create(256, 512, cvImgSPtr->image.type());
99  cv::undistort(cvImgSPtr->image, undistortedImage, galaxis::camera::matrixD_mtx, galaxis::camera::matrixK_dist, newCameraMatrix);
100
101  cv::Mat undistortedTopViewImage;
102  undistortedImage.create(256, 512, cvImgSPtr->image.type());
103  cv::warpPerspective(undistortedImage, undistortedTopViewImage, perspectiveTransformMatrix, cv::Size(512, 256));
104
105  // StopLineDetection
106  bool stopLineDetected = false;
107  int height = 0;
108  int yOffset = 0;
109  if(m_stopLineDetectionMode) {
110  height = undistortedTopViewImage.rows * 0.3f;
111  yOffset = undistortedTopViewImage.rows * 0.55f;
112  cv::Rect roiForCropStopLine = Rect(undistortedTopViewImage.cols * 0.4f, yOffset, undistortedTopViewImage.cols * 0.25f, height);
113  cv::Mat croppedImageForStartStopLineDetection = undistortedTopViewImage(roiForCropStopLine);
114  cv::Mat copiedImageForStopLineDetec = croppedImageForStartStopLineDetection.clone(); // copy
115  stopLineDetected = this->detect_stopline(copiedImageForStopLineDetec, msg->header);
116  }
117
118  // StartLineDetection
119  bool startLineDetected = false;
120  if(m_startlineDetectionMode) {
121  height = undistortedTopViewImage.rows * 0.2f;
122  yOffset = undistortedTopViewImage.rows * 0.6f;
123  cv::Rect roiForCrop = Rect(undistortedTopViewImage.cols * 0.2f, yOffset, undistortedTopViewImage.cols * 0.4f, height);
124  cv::Mat croppedImageForStartLineDetection = undistortedTopViewImage(roiForCrop);
125  startLineDetected = this->detect_startline(croppedImageForStartLineDetection, msg->header);
126  }
127
128  if(startLineDetected || stopLineDetected) {
129  log("Start or Stopline detected: Sending message...");
130  std::unique_ptr<StopLineType> lineMessageUPtr = std::make_unique<StopLineType>();
131
132  if(stopLineDetected && startLineDetected) {
133  stopLineDetected = false;
134  }
135
136  lineMessageUPtr->header.stamp = msg->header.stamp;
137  lineMessageUPtr->stopline_flag = stopLineDetected;
138  lineMessageUPtr->stopline_distance = stopLineDetected ? 0.5f : -1.f; // TODO
139
140  lineMessageUPtr->startline_flag = startLineDetected;
141  lineMessageUPtr->startline_distance = startLineDetected ? 0.5f : -1.f; // TODO
142
143  m_stopLinePublisherSPtr->publish(std::move(lineMessageUPtr));
144  log("Total Calculation and Publish Time [ms]: ", stopwatch.get_milliseconds());
145  }
146 }

References detect_startline(), detect_stopline(), galaxis::utils::MicroStopwatch::get_milliseconds(), galaxis::utils::log(), m_startlineDetectionMode, m_stopLineDetectionMode, m_stopLinePublisherSPtr, galaxis::camera::matrixD_mtx, galaxis::camera::matrixK_dist, newCameraMatrix, and perspectiveTransformMatrix.

Referenced by StopLineDetection().

Here is the call graph for this function:
Here is the caller graph for this function:

Member Data Documentation

◆ m_debugMode

bool StopLineDetection::m_debugMode = false
private

Definition at line 27 of file stoplinedetection.hpp.

Referenced by detect_startline(), detect_stopline(), and StopLineDetection().

◆ m_imgBridge_ptr

cv_bridge::CvImagePtr StopLineDetection::m_imgBridge_ptr
private

Definition at line 31 of file stoplinedetection.hpp.

◆ m_imgBridgeLeft_ptr

cv_bridge::CvImagePtr StopLineDetection::m_imgBridgeLeft_ptr
private

Definition at line 32 of file stoplinedetection.hpp.

◆ m_imgBridgeLeftRef_ptr

cv_bridge::CvImagePtr StopLineDetection::m_imgBridgeLeftRef_ptr
private

Definition at line 34 of file stoplinedetection.hpp.

◆ m_imgBridgeRight_ptr

cv_bridge::CvImagePtr StopLineDetection::m_imgBridgeRight_ptr
private

Definition at line 33 of file stoplinedetection.hpp.

◆ m_imgBridgeRightRef_ptr

cv_bridge::CvImagePtr StopLineDetection::m_imgBridgeRightRef_ptr
private

Definition at line 35 of file stoplinedetection.hpp.

◆ m_simulationMode

bool StopLineDetection::m_simulationMode = false
private

Definition at line 26 of file stoplinedetection.hpp.

Referenced by StopLineDetection().

◆ m_startLineBlockSize

int StopLineDetection::m_startLineBlockSize = 3
private

Definition at line 56 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_startLineClusterEps

int StopLineDetection::m_startLineClusterEps = 10
private

Definition at line 58 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_startlineDetectionMode

bool StopLineDetection::m_startlineDetectionMode = true
private

Definition at line 28 of file stoplinedetection.hpp.

Referenced by on_stop_line_detection_callback(), and StopLineDetection().

◆ m_startLineGreynessLowerThreshold

int StopLineDetection::m_startLineGreynessLowerThreshold = 80
private

Definition at line 53 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_startLineImagePublisher

image_transport::Publisher StopLineDetection::m_startLineImagePublisher
private

Definition at line 40 of file stoplinedetection.hpp.

Referenced by detect_startline(), and StopLineDetection().

◆ m_startLineK

double StopLineDetection::m_startLineK = 0.04
private

Definition at line 57 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_startLineMinDistance

double StopLineDetection::m_startLineMinDistance = 10
private

Definition at line 55 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_startLinePointsCountThreshold

int StopLineDetection::m_startLinePointsCountThreshold = 9
private

Definition at line 59 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_startLineQualityLevel

double StopLineDetection::m_startLineQualityLevel = 0.35
private

Definition at line 54 of file stoplinedetection.hpp.

Referenced by detect_startline(), and new_parameters_callback().

◆ m_stopLineDetectedInLastStep

bool StopLineDetection::m_stopLineDetectedInLastStep = false
private

Definition at line 47 of file stoplinedetection.hpp.

◆ m_stopLineDetectionMode

bool StopLineDetection::m_stopLineDetectionMode = true
private

Definition at line 29 of file stoplinedetection.hpp.

Referenced by on_stop_line_detection_callback(), and StopLineDetection().

◆ m_stopLineHoughMaxLineGap

int StopLineDetection::m_stopLineHoughMaxLineGap = 10
private

Definition at line 50 of file stoplinedetection.hpp.

Referenced by detect_stopline(), and new_parameters_callback().

◆ m_stopLineHoughMinLineLength

int StopLineDetection::m_stopLineHoughMinLineLength = 25
private

Definition at line 49 of file stoplinedetection.hpp.

Referenced by detect_stopline(), and new_parameters_callback().

◆ m_stopLineHoughThreshold

int StopLineDetection::m_stopLineHoughThreshold = 70
private

Definition at line 51 of file stoplinedetection.hpp.

Referenced by detect_stopline(), and new_parameters_callback().

◆ m_stopLineImagePublisher

image_transport::Publisher StopLineDetection::m_stopLineImagePublisher
private

Definition at line 39 of file stoplinedetection.hpp.

Referenced by detect_stopline(), and StopLineDetection().

◆ m_StopLineImageSubscriber

rclcpp::Subscription<sensor_msgs::msg::Image>::SharedPtr StopLineDetection::m_StopLineImageSubscriber
private

Definition at line 45 of file stoplinedetection.hpp.

Referenced by StopLineDetection().

◆ m_stopLinePublisherSPtr

rclcpp::Publisher<StopLineType>::SharedPtr StopLineDetection::m_stopLinePublisherSPtr
private

Definition at line 42 of file stoplinedetection.hpp.

Referenced by on_stop_line_detection_callback(), and StopLineDetection().

◆ newCameraMatrix

cv::Mat StopLineDetection::newCameraMatrix
private

Definition at line 61 of file stoplinedetection.hpp.

Referenced by on_stop_line_detection_callback(), and StopLineDetection().

◆ perspectiveTransformMatrix

cv::Mat StopLineDetection::perspectiveTransformMatrix
private

Definition at line 62 of file stoplinedetection.hpp.

Referenced by on_stop_line_detection_callback(), and StopLineDetection().

The documentation for this class was generated from the following files:
StopLineDetection::m_startlineDetectionMode
bool m_startlineDetectionMode
Definition: stoplinedetection.hpp:28
StopLineDetection::m_startLineBlockSize
int m_startLineBlockSize
Definition: stoplinedetection.hpp:56
StopLineDetection::perspectiveTransformMatrix
cv::Mat perspectiveTransformMatrix
Definition: stoplinedetection.hpp:62
GalaxisNode::enable_parameters
void enable_parameters(std::function< rcl_interfaces::msg::SetParametersResult(const std::vector< rclcpp::Parameter > &)> callbackFunc)
Definition: GalaxisNode.cpp:69
StopLineDetection::new_parameters_callback
rcl_interfaces::msg::SetParametersResult new_parameters_callback(const std::vector< rclcpp::Parameter > &parameters)
Definition: stoplinedetection.cpp:278
StopLineDetection::m_startLineK
double m_startLineK
Definition: stoplinedetection.hpp:57
StopLineDetection::m_startLineImagePublisher
image_transport::Publisher m_startLineImagePublisher
Definition: stoplinedetection.hpp:40
StopLineDetection::m_debugMode
bool m_debugMode
Definition: stoplinedetection.hpp:27
json
nlohmann::json json
Definition: AutoPilotNode.hpp:21
StopLineDetection::detect_stopline
bool detect_stopline(cv::Mat &image, std_msgs::msg::Header const &header)
Definition: stoplinedetection.cpp:148
galaxis::utils::log_warning
void log_warning(const Args &... args)
Definition: logger.hpp:41
StopLineDetection::m_startLineGreynessLowerThreshold
int m_startLineGreynessLowerThreshold
Definition: stoplinedetection.hpp:53
galaxis::camera::getPerspectiveTransform
cv::Mat getPerspectiveTransform()
Definition: CameraCalibration.cpp:11
galaxis::camera::matrixK_dist
const cv::Mat matrixK_dist
Definition: CameraCalibration.hpp:30
StopLineDetection::m_startLineQualityLevel
double m_startLineQualityLevel
Definition: stoplinedetection.hpp:54
galaxis::utils::read_json_file
shared_ptr< json > read_json_file(std::string path)
Definition: settings.cpp:5
GalaxisNode::get_global_settings
json const & get_global_settings()
Definition: GalaxisNode.cpp:119
StopLineDetection::m_stopLineImagePublisher
image_transport::Publisher m_stopLineImagePublisher
Definition: stoplinedetection.hpp:39
StopLineDetection::m_startLinePointsCountThreshold
int m_startLinePointsCountThreshold
Definition: stoplinedetection.hpp:59
StopLineDetection::m_startLineMinDistance
double m_startLineMinDistance
Definition: stoplinedetection.hpp:55
GalaxisNode::GalaxisNode
GalaxisNode()=delete
galaxis::lina::Point2f
Eigen::Vector2f Point2f
Definition: linatypes.hpp:18
StopLineDetection::m_stopLinePublisherSPtr
rclcpp::Publisher< StopLineType >::SharedPtr m_stopLinePublisherSPtr
Definition: stoplinedetection.hpp:42
StopLineDetection::newCameraMatrix
cv::Mat newCameraMatrix
Definition: stoplinedetection.hpp:61
StopLineDetection::m_stopLineHoughMinLineLength
int m_stopLineHoughMinLineLength
Definition: stoplinedetection.hpp:49
galaxis::camera::matrixD_mtx
const cv::Mat matrixD_mtx
Definition: CameraCalibration.hpp:28
galaxis::utils::MicroStopwatch::get_milliseconds
long long get_milliseconds() const
Definition: clock.cpp:37
StopLineDetection::detect_startline
bool detect_startline(cv::Mat &image, std_msgs::msg::Header const &header)
Definition: stoplinedetection.cpp:212
StopLineDetection::m_startLineClusterEps
int m_startLineClusterEps
Definition: stoplinedetection.hpp:58
StopLineDetection::m_stopLineDetectionMode
bool m_stopLineDetectionMode
Definition: stoplinedetection.hpp:29
StopLineDetection::m_StopLineImageSubscriber
rclcpp::Subscription< sensor_msgs::msg::Image >::SharedPtr m_StopLineImageSubscriber
Definition: stoplinedetection.hpp:45
StopLineDetection::m_simulationMode
bool m_simulationMode
Definition: stoplinedetection.hpp:26
StopLineDetection::m_stopLineHoughMaxLineGap
int m_stopLineHoughMaxLineGap
Definition: stoplinedetection.hpp:50
StopLineDetection::on_stop_line_detection_callback
void on_stop_line_detection_callback(sensor_msgs::msg::Image::SharedPtr msg)
Definition: stoplinedetection.cpp:82
galaxis::utils::log
void log(const Args &... args)
Definition: logger.hpp:33
galaxis::camera::getOptimalCameraMatrix
cv::Mat getOptimalCameraMatrix()
Definition: CameraCalibration.cpp:6
galaxis::utils::MicroStopwatch
Definition: clock.hpp:10
galaxis::utils::log_debug
void log_debug(const Args &... args)
Definition: logger.hpp:62
StopLineDetection::m_stopLineHoughThreshold
int m_stopLineHoughThreshold
Definition: stoplinedetection.hpp:51
