quadrature_counter.h File Reference

#include <stdbool.h>
#include <stdint.h>

Include dependency graph for quadrature_counter.h:

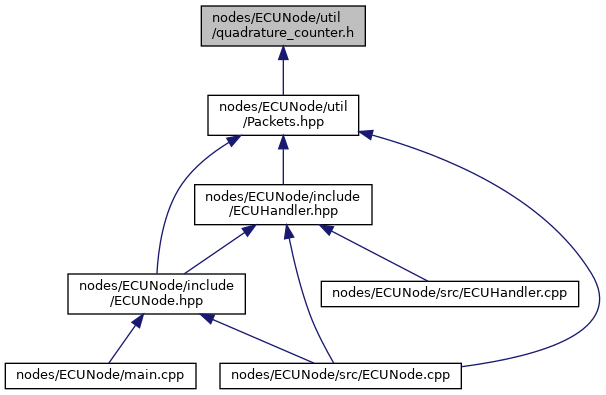

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	QCTR_CARRY_BIT   0x7U
#define	QCTR_BORROW_BIT   0x6U
#define	QCTR_CMP_BIT   0x5U
#define	QCTR_IDX_BIT   0x4U
#define	QCTR_CEN_BIT   0x3U
#define	QCTR_PLS_BIT   0x2U
#define	QCTR_UD_BIT   0x1U
#define	QCTR_S_BIT   0x0U
#define	SYNC_MODE   0x40U
#define	RUNNING_MODE   0x00U
#define	COUNT_MODE   0x03U
#define	INDEX_MODE   0x00U
#define	FILTER_MODE   0x00U
#define	FLAG_MODE   0x00U
#define	DATA_WIDTH   0x00U
#define	CNTR_BYTES   (0x4U - DATA_WIDTH)
#define	QCTR_MAX_BYTES   0x4U
#define	ENABLE_CNTR   0x00U
#define	DISABLE_CNTR   0x04U

Typedefs
typedef int32_t	quadratureCounterValueType

Macro Definition Documentation

CNTR_BYTES

#define CNTR_BYTES   (0x4U - DATA_WIDTH)

Definition at line 113 of file quadrature_counter.h.

COUNT_MODE

#define COUNT_MODE   0x03U

Definition at line 104 of file quadrature_counter.h.

DATA_WIDTH

#define DATA_WIDTH   0x00U

Definition at line 112 of file quadrature_counter.h.

DISABLE_CNTR

#define DISABLE_CNTR   0x04U

Definition at line 116 of file quadrature_counter.h.

ENABLE_CNTR

#define ENABLE_CNTR   0x00U

Definition at line 115 of file quadrature_counter.h.

FILTER_MODE

#define FILTER_MODE   0x00U

Definition at line 106 of file quadrature_counter.h.

FLAG_MODE

#define FLAG_MODE   0x00U

Definition at line 111 of file quadrature_counter.h.

INDEX_MODE

#define INDEX_MODE   0x00U

Definition at line 105 of file quadrature_counter.h.

QCTR_BORROW_BIT

#define QCTR_BORROW_BIT   0x6U

Definition at line 91 of file quadrature_counter.h.

QCTR_CARRY_BIT

#define QCTR_CARRY_BIT   0x7U

Definition at line 90 of file quadrature_counter.h.

QCTR_CEN_BIT

#define QCTR_CEN_BIT   0x3U

Definition at line 94 of file quadrature_counter.h.

QCTR_CMP_BIT

#define QCTR_CMP_BIT   0x5U

Definition at line 92 of file quadrature_counter.h.

QCTR_IDX_BIT

#define QCTR_IDX_BIT   0x4U

Definition at line 93 of file quadrature_counter.h.

QCTR_MAX_BYTES

#define QCTR_MAX_BYTES   0x4U

Definition at line 114 of file quadrature_counter.h.

QCTR_PLS_BIT

#define QCTR_PLS_BIT   0x2U

Definition at line 95 of file quadrature_counter.h.

QCTR_S_BIT

#define QCTR_S_BIT   0x0U

Definition at line 97 of file quadrature_counter.h.

QCTR_UD_BIT

#define QCTR_UD_BIT   0x1U

Definition at line 96 of file quadrature_counter.h.

RUNNING_MODE

#define RUNNING_MODE   0x00U

Definition at line 103 of file quadrature_counter.h.

SYNC_MODE

#define SYNC_MODE   0x40U

Definition at line 102 of file quadrature_counter.h.

Typedef Documentation

quadratureCounterValueType

typedef int32_t quadratureCounterValueType

Definition at line 121 of file quadrature_counter.h.
